| 品番 | リブパイプ本管 ＋塩ビ取付管 |

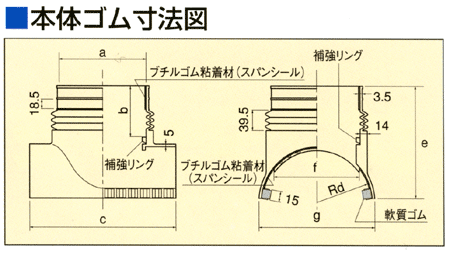

寸法 | ||||||
| a | b | c | d | e | f | g | ||
| MH-SJRRBN150/100 | 150×100 | 118 | 98.4 | 233 | 82.5 | 200 | 116 | 175 |
| MH-SJRRBN200/100 | 200×100 | 118 | 98.4 | 233 | 108 | 203 | 116 | 221 |
| MH-SJRRBN200/150 | 200×150 | 169 | 98.4 | 284 | 108 | 218 | 166 | 225 |
| MH-SJRRBN250/100 | 250×100 | 108 | 98.4 | 233 | 108 | 203 | 116 | 221 |
| MH-SJRRBN250/150 | 250×150 | 133.5 | 98.4 | 284 | 133.5 | 237 | 166 | 274 |
